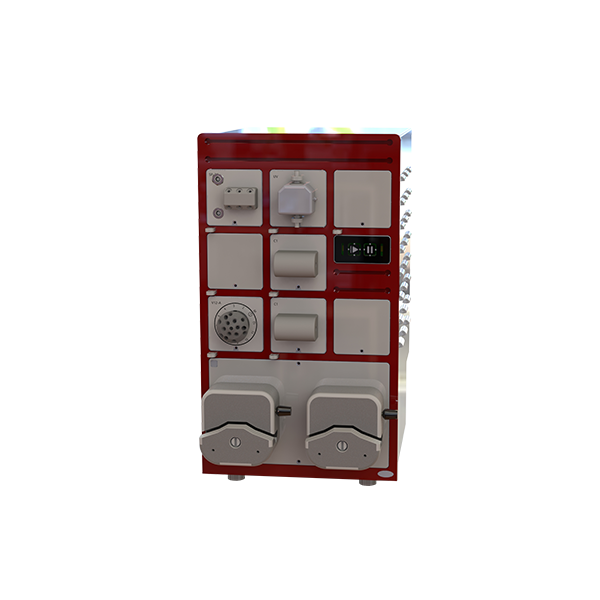

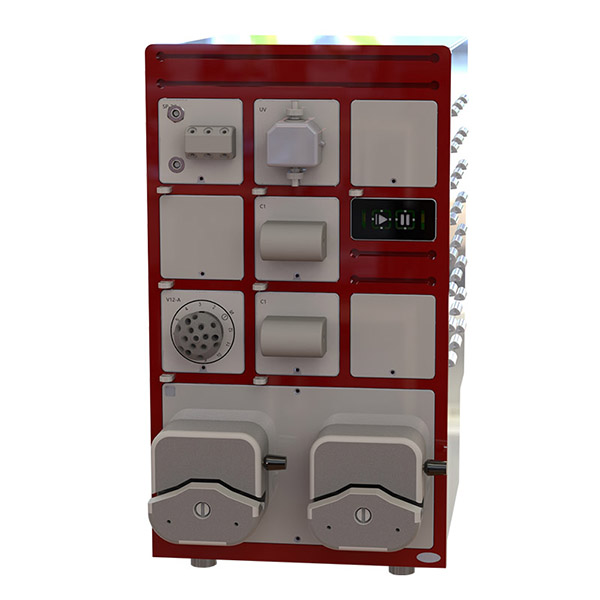

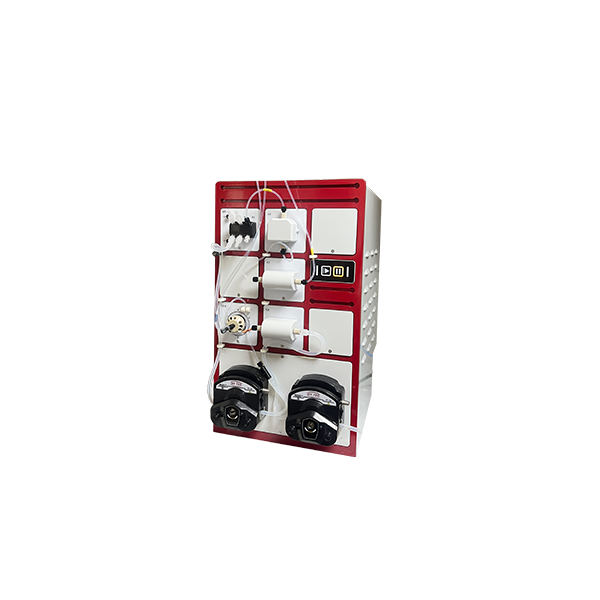

HY HassCR150 fully automatic ultrafiltration (concentration and liquid exchange) system

HY HassCR150 fully automatic ultrafiltration (concentration and liquid exchange) system

Introduction:

- Multi channel: A single computer controls multiple instruments, which can be parallel or serial
- Regular computers: up to 16 units
- Flow rate range: 0~2500mL/min customizable
- Pressure resistance: 0~70psi
- Single wavelength 280: ± 6AU
- Attachment: Dual conductivity and dual liquid level detection Scope of application

Scope of application

Combined with the Pellicon module, fully automated protein purification and concentration can be carried out, from experimental to industrial levels, with only the need to replace the inlet and outlet pipelines. This system can be used for liquid exchange and preparation.

Message inquiry?Online customer service contact

產品參數應用示例

項目	參數	備注
外觀
泵	流速范圍： 0~150mL/min（默認16#）。耐壓： 0.5Mpa（70psi）。流速準確度：±2~10%，流速精度：RSD< 4 %。轉速分辨率： 1rpm。接口：網口通信壓力傳感器：耐壓范圍(0~10Mpa) 精度：±0.025Mpa 清洗：自動清洗	默認單泵500mL/min，更換硅膠管，最大可達2500mL/min
檢測器	單波長檢測器280nm	可選其他波長
電導1	電導0-999 mS/cm，分度0.001，基本誤差±1.0% 自動溫度補償	默認
電導2	電導0-999 mS/cm，分度0.001，基本誤差±1.0% 自動溫度補償	默認
通信方式	TCPIP(100M網口)	默認
配件盒子	管路接頭等配件	默認
工作站	中英文界面，包含儀器控制、方法編制、數據處理和打印報告功能，用戶和實驗結果數據庫，加密數據庫管理用戶和實驗結果，支持峰積分、定量計算、審計追蹤、scouting、通道scouting、方法編程功能和8通道聯合工作	默認
A泵入口閥	7通道高壓旋轉閥	6通道 +1公共通道(7通道)
氣泡傳感器入口A	外置超聲波	默認
液位檢測器1	響應時間<500ms	默認
液位檢測器2	響應時間<500ms	默認
壓力傳感器1	P1,柱前, 0~10Mpa	默認
壓力傳感器2	P2,柱后, 0~10Mpa	默認
壓力傳感器3	P3,回流后, 0~10Mpa	默認
加壓裝置	默認AP1，AP2 兩個	默認
濃縮溶液范圍	根據管路及配置10mL ~ 200L及更大	默認
擴展接口	1個級聯電源、2個網口， 2個DB9口，3個DSub
可選通道數	1~12通道	默認1通道
通信指令	自定義優化指令設計，對外提供通過測試開發庫包含.net格式、及C/C++DLL格式，提供示例源碼	可用于二次開發。
人機接口	win7/win10/win11	配置：Intel i3及以上處理器，內存>=8GB, 硬盤>=256GB 顯示：1920x1080
供電	110v~220V(交流)，±5%
溫度	-10~40℃，無冷凝
